Removing Spyder TL-R Bolt?

Hey All,

New to the forum and to paintball. Just picked up a Spyder TL-R from a yard sale a few weeks ago and am trying to clean it all up before a game this weekend. I'm having some trouble, though: I can't seem to get the bolt out of the body. I pulled the pin, removed the cocker pin thing, but am not sure what to do next. The bolt slides out maybe an inch out of the back of the marker, but that's it. Is there another step?

I searched online for help with this, but the forums that addressed it were either expired or linked to dead pages.

Any help would be awesome. The gun didn't come with a manual and I really want to play with it this weekend.

Thanks!
jtmlb3k is offline View My Blog!   Reply With Quote
Sponsored Links
Advertisement


Old November 2nd, 2012, 10:26 PM   #2 (permalink)
Senior Member

huckduck's Avatar

Join Date: Nov 2010
Location: Canada
Posts: 3,412
take out the velocity adjuster as well i believe. theres a pin that connects the bolt to the hammer. and if you don't pull out the lower tube cap (the adjuster) you can't pull out the bolt
huckduck is offline View My Blog!   Reply With Quote
Old November 3rd, 2012, 03:16 AM   #3 (permalink)
I'm out of creativity.

martix_agent's Avatar

Join Date: Nov 2004
Location: Lafayette/Kokomo Indiana
Posts: 24,157
yea, you have to remove the back piece. be careful, or you'll have it spring out and you may loose pieces.
__________________
martix_agent is offline View My Blog!   Reply With Quote
Old November 3rd, 2012, 07:50 AM   #4 (permalink)
Cunning Linguist

Join Date: May 2004
Location: New Brunswick Canada
Posts: 2,390
I once had my bolt expand inside my marker which made it very difficult to remove. It wasn't the stock bolt, I believe it was delrin but I could be mistaken (does delrin expand?). What it is made of could affect how it behaves inside the marker and since you got it at a yard sale it may not be the stock bolt. Just a thought.
__________________
<toNt> SO HELP ME GOD IF U KICK ME AGAIN I WILL ATTACK WITH ANGERED FISTS!
Angered Fists is offline View My Blog!   Reply With Quote
Old November 3rd, 2012, 08:56 AM   #5 (permalink)
Registered User

Join Date: Nov 2012
Posts: 4

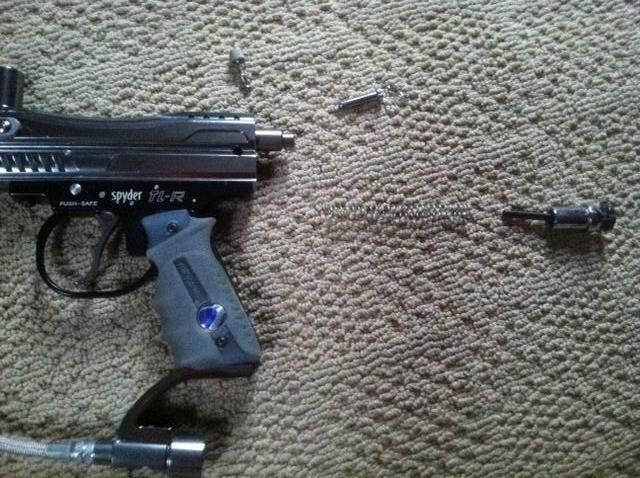

Thanks for the responses, everyone. I had taken out the velocity adjuster, too. Here's a picture to try to give you a better idea of where I'm at. Do I just need to use some vice grips and force the bolt out?

jtmlb3k is offline View My Blog!   Reply With Quote
Old November 3rd, 2012, 02:12 PM   #6 (permalink)
I'm out of creativity.

martix_agent's Avatar

Join Date: Nov 2004
Location: Lafayette/Kokomo Indiana
Posts: 24,157
IT SHOULD PULL RIGHT OUT.

maybe push the safety button? if that doesn't work, remove the grip frame.
__________________
martix_agent is offline View My Blog!   Reply With Quote
Old November 3rd, 2012, 04:19 PM   #7 (permalink)
Senior Member

huckduck's Avatar

Join Date: Nov 2010
Location: Canada
Posts: 3,412
i have a feeling your hammer's caught on the sear. try pulling the trigger as you pull it out, or loosen the grip frame

but you shouldn't need vice grips
huckduck is offline View My Blog!   Reply With Quote
Old November 3rd, 2012, 04:31 PM   #8 (permalink)
Senior Member

bobide's Avatar

Join Date: Jul 2004
Location: STL
Posts: 12,965
Quote:
Originally Posted by Angered Fists View Post
I once had my bolt expand inside my marker which made it very difficult to remove. It wasn't the stock bolt, I believe it was delrin but I could be mistaken (does delrin expand?). What it is made of could affect how it behaves inside the marker and since you got it at a yard sale it may not be the stock bolt. Just a thought.
delrin can swell if you lube it with the wrong stuff
__________________
05 PROMASTER , 14" Macdev Matchstick, Kila Drive, Zentriam Valve, ICDU ram, CCM no-rise, Sonic lpr
[/center]
bobide is offline View My Blog!   Reply With Quote
Old November 3rd, 2012, 05:05 PM   #9 (permalink)
Cunning Linguist

Join Date: May 2004
Location: New Brunswick Canada
Posts: 2,390
Quote:
Originally Posted by bobide View Post
delrin can swell if you lube it with the wrong stuff
Any way to reverse it?
__________________
<toNt> SO HELP ME GOD IF U KICK ME AGAIN I WILL ATTACK WITH ANGERED FISTS!
Angered Fists is offline View My Blog!   Reply With Quote
Old November 3rd, 2012, 09:17 PM   #10 (permalink)
Registered User

Join Date: Nov 2012
Posts: 4
So here's where I'm at: I took the grip frame and the ball detent off, and it's still stuck. I can't pull it out any farther than in the picture. It sounds like the bolt is hitting something inside; any other ideas what it might be??
jtmlb3k is offline View My Blog!   Reply With Quote
Old November 3rd, 2012, 09:43 PM   #11 (permalink)
Registered User

Join Date: Nov 2012
Posts: 4
I got it! The problem was absurd. It took me disassembling everything else to finally figure out what could be wrong. Apparently there was a flake of metal hanging in the body near where the gun cocks (like on the edge of that seam where the cocking pin slides), so I sanded it down and the bolt finally slid out. It was also pink from a break. I'll try to play with it tomorrow and then replace the body afterwards if everything else works fine.

It only cost me $50 with a halo hopper, mask, tank, and three barrels (one of which was a front for a freak kit), so it's not a huge loss if I have to fix it up a bit.

Mystery solved, though. Thanks for the help, everyone!
